Neomounts desk monitor arm
Neomounts desk monitor arm
307.36€
Ex Tax: 254.02€
- Stock: 10
- Model: DS75S-950BL2
- ISBN: 8717371441579
- MPN: DS75S-950BL2

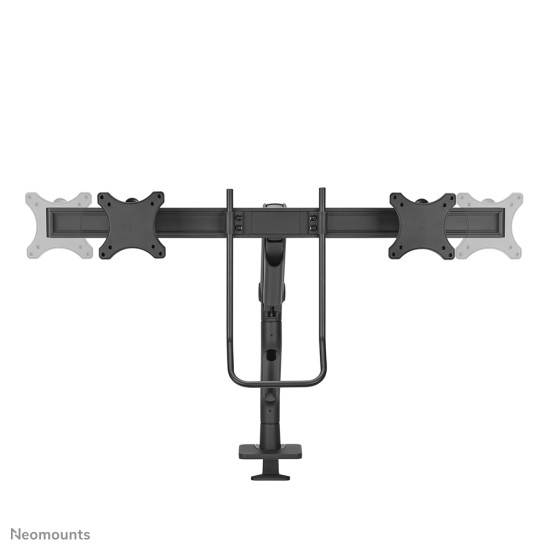

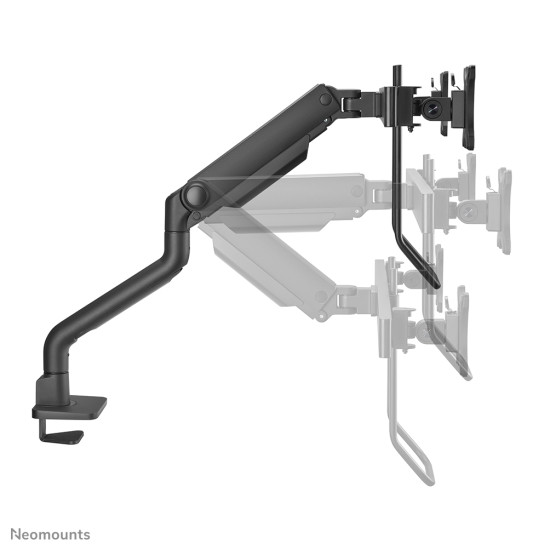

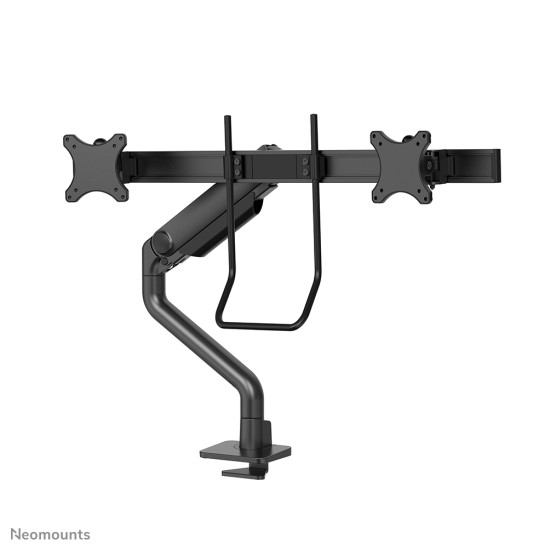

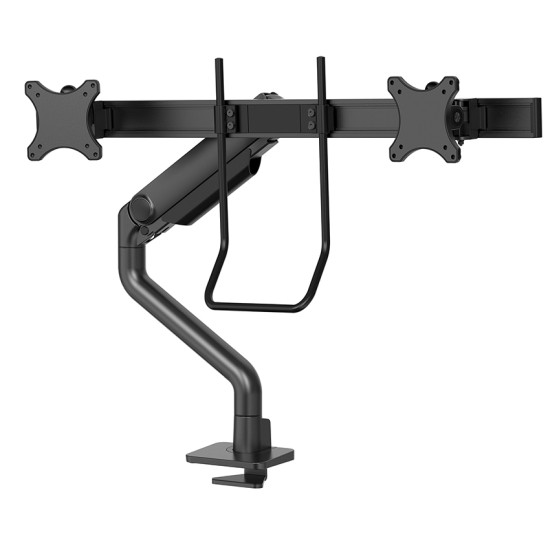

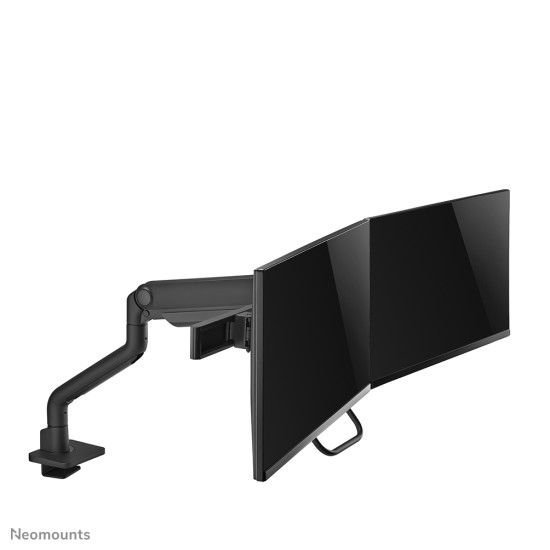

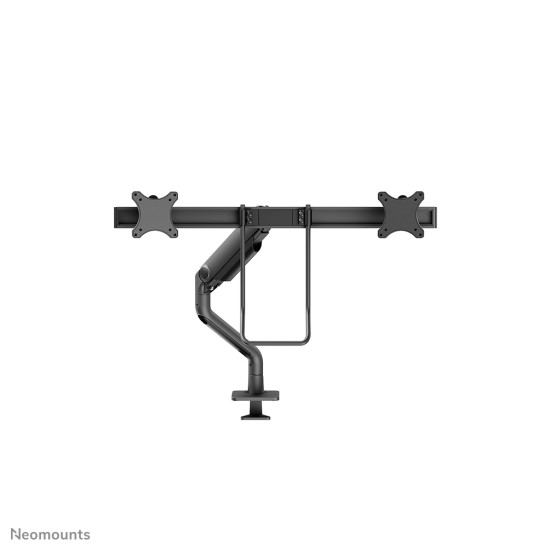

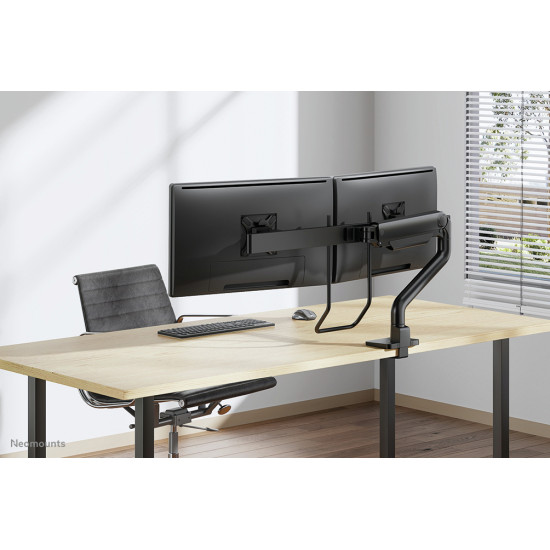

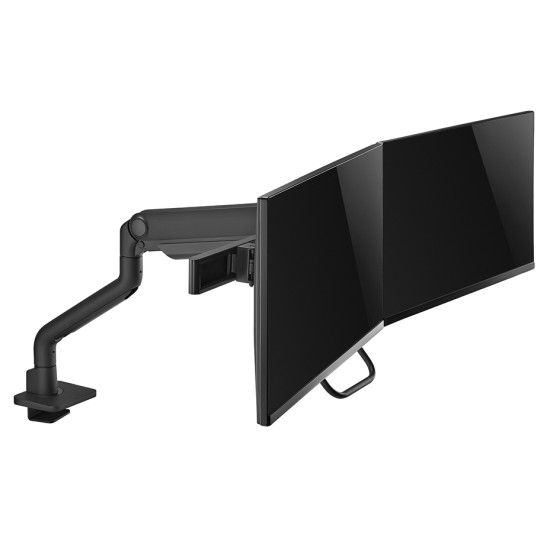

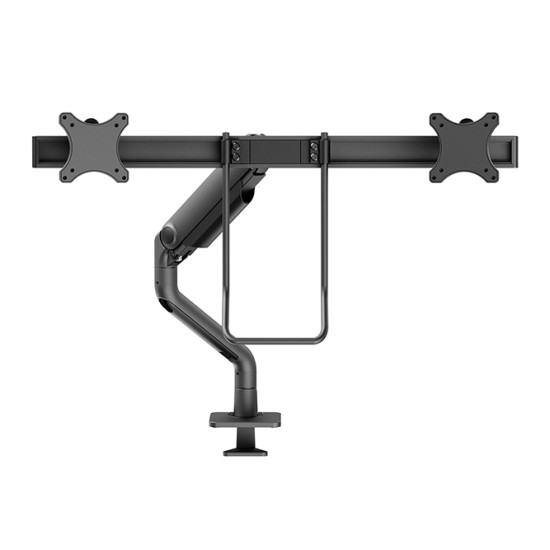

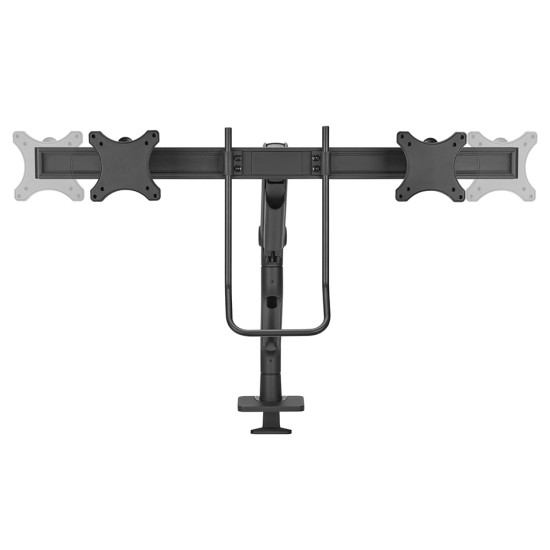

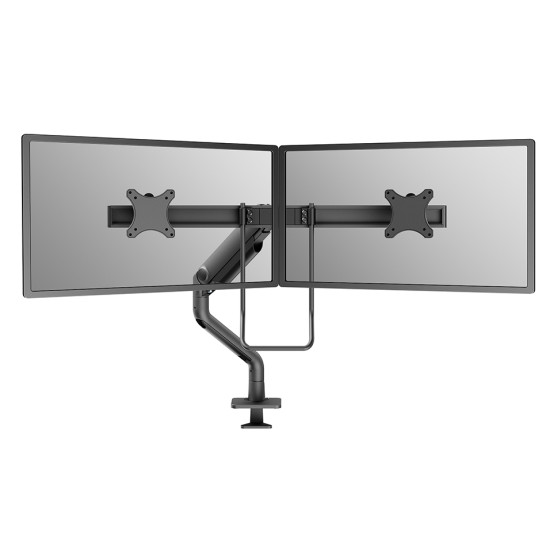

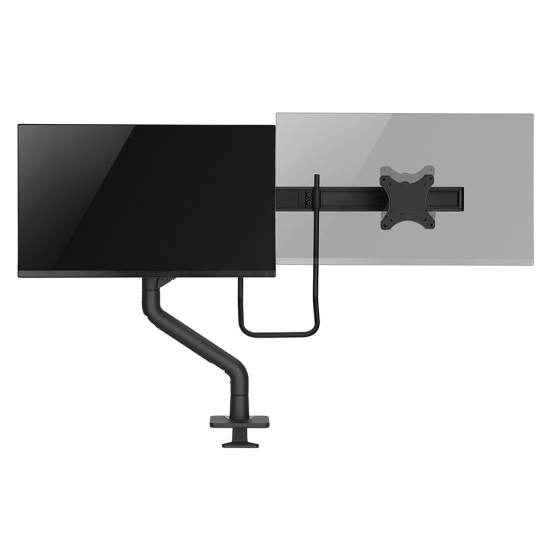

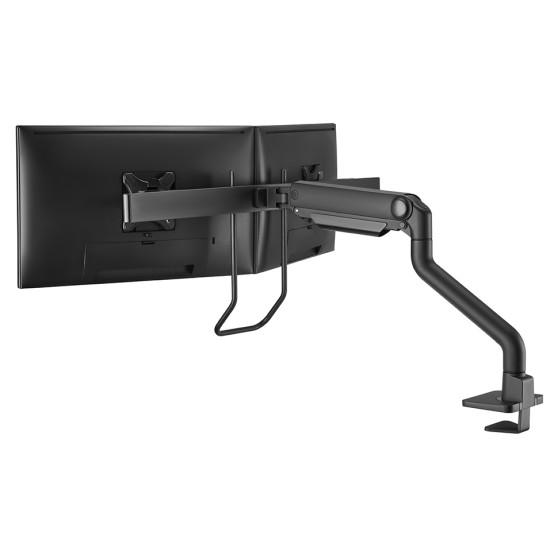

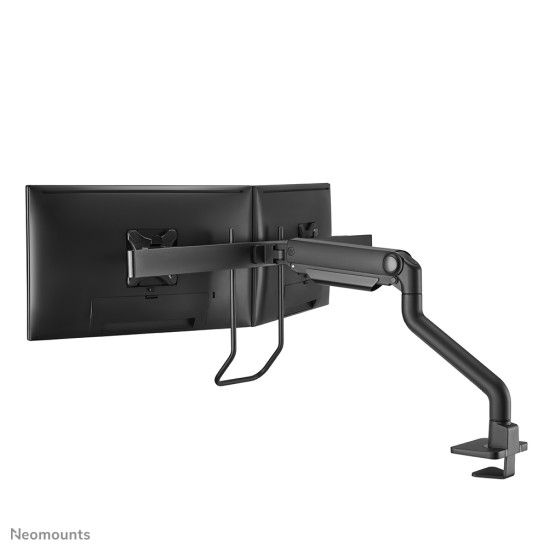

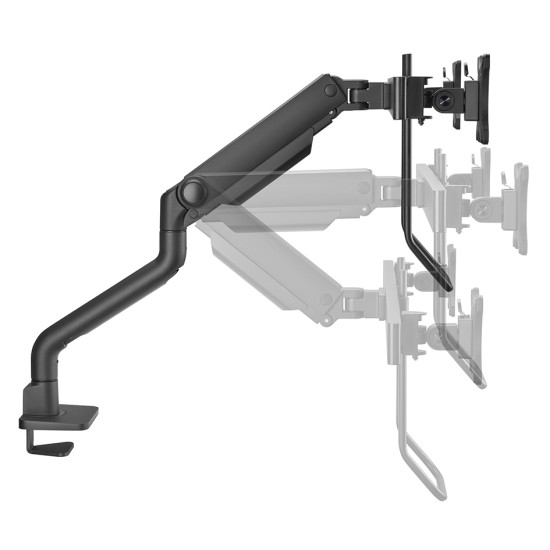

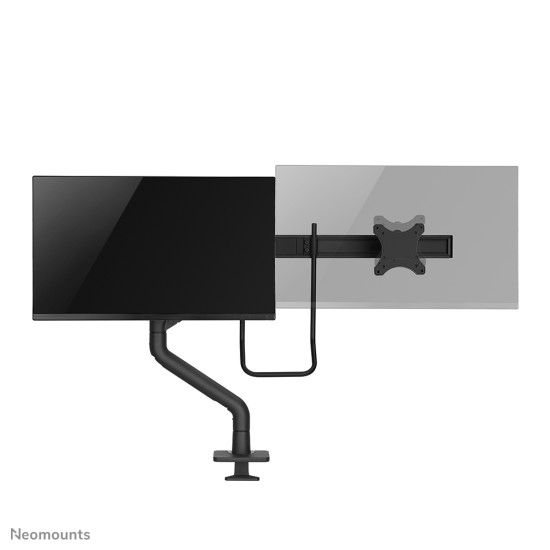

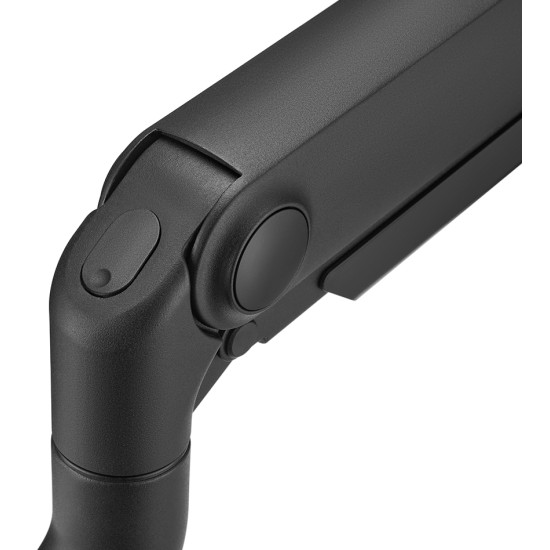

The Neomounts DS75S-950BL2 NEXT One is a full motion desk mount for two screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.

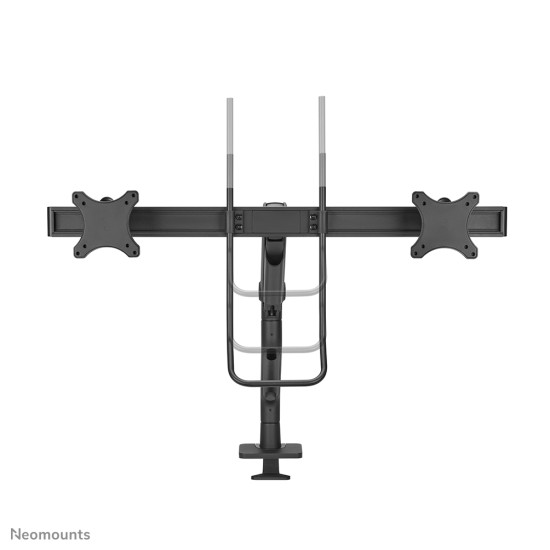

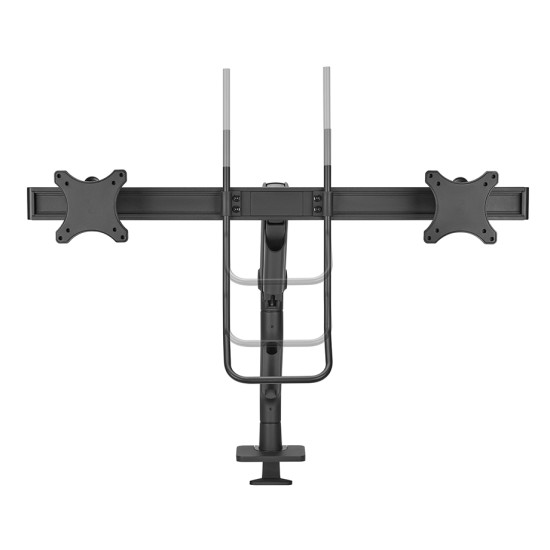

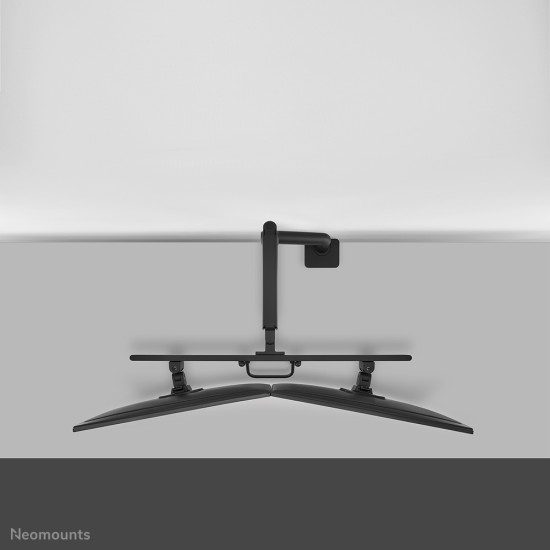

The DS75S-950BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

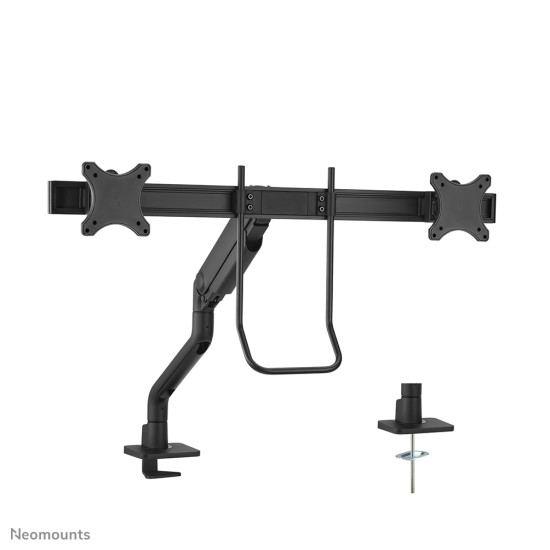

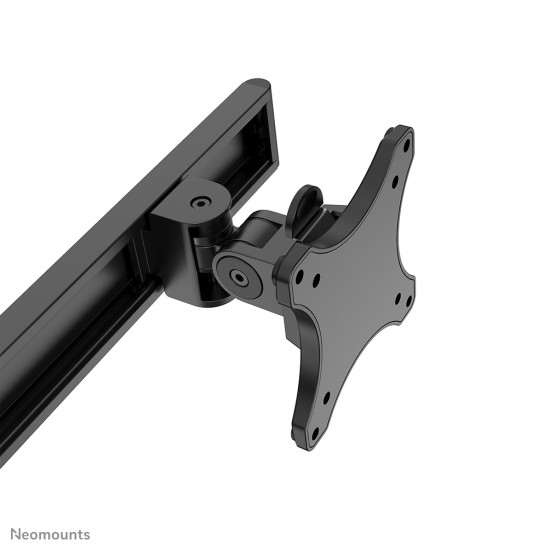

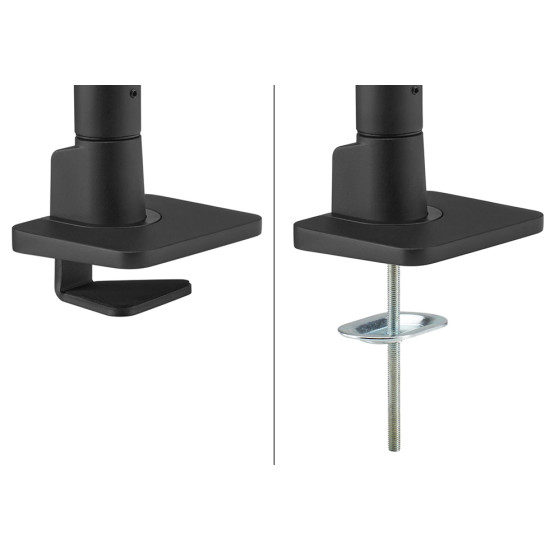

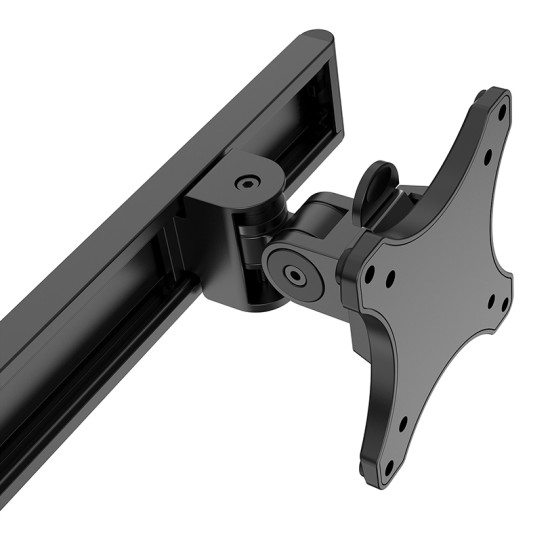

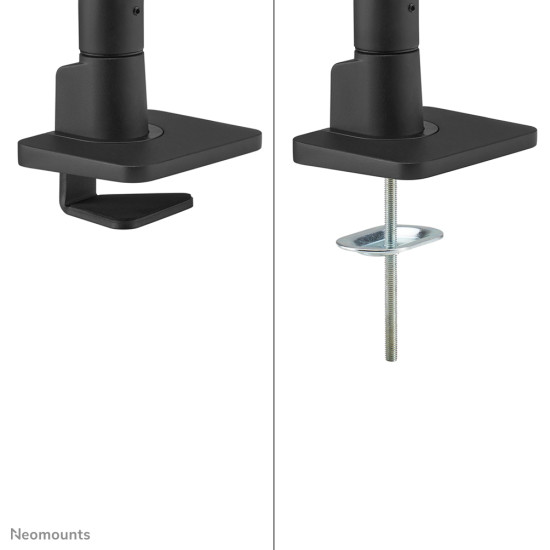

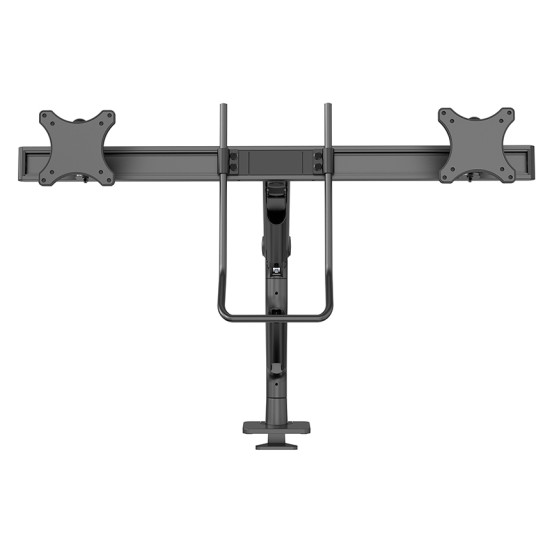

The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

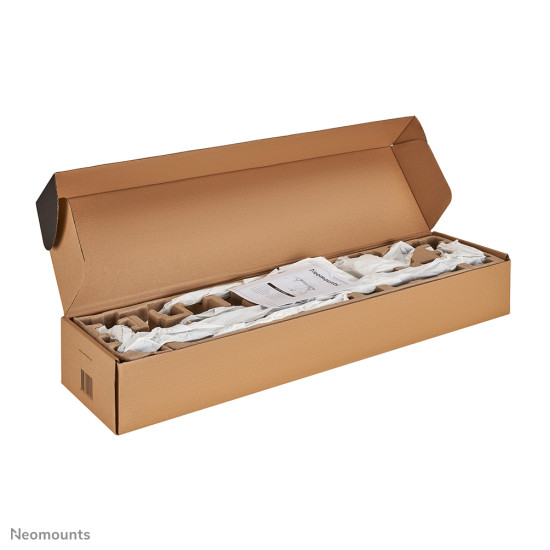

The packaging of the DS75S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper.The NEXT One products have an extended warranty period of 10-years.
The DS75S-950BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS75S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper.The NEXT One products have an extended warranty period of 10-years.
Mounting | |
Minimum screen size | 43.2 cm (17") |
Maximum weight capacity | 8 kg |
Maximum screen size | 68.6 cm (27") |
Mounting | Clamp/Grommet |
Minimum VESA mount | 75 x 75 mm |
Maximum VESA mount | 100 x 100 mm |
Panel mounting interface | 75 x 75,100 x 100 mm |
Distance to the wall (max) | 74.1 cm |
Grommet mount desk thickness (max) | 5.5 cm |
Number of displays supported | 2 |
Distance to the wall (min) | 20.4 cm |
Mounting type | Desk |
Clamp mount desk thickness (max) | 5 cm |
Technical details | |
Warranty period | 10 year(s) |
Weight & dimensions | |

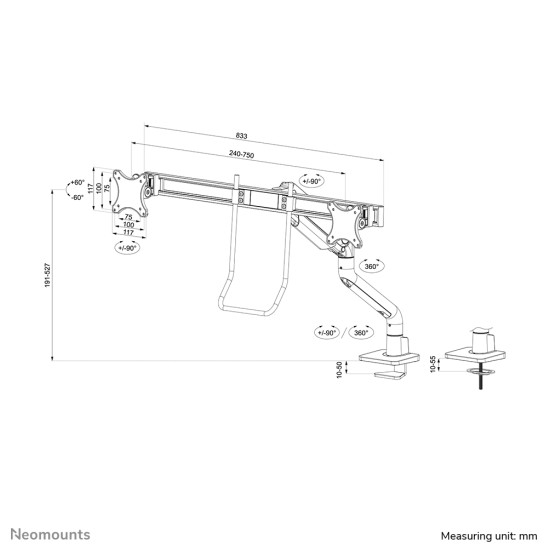

Width | 833 mm |
Depth | 739 mm |
Height | 1085 mm |
Package width | 222 mm |
Package depth | 120 mm |
Package height | 887 mm |
Package net weight | 7.1 kg |
Package type | Box |
Design | |
Housing material | Aluminium |
Easy to install | Yes |
Product colour | Black |
Ergonomics | |
Height adjustment | Yes |
Height adjustment type | Gas spring |
Rotating | Yes |
Height adjustment range | 19.1 - 52.7 mm |
Adjustable depth | Yes |
Depth adjustment range | 17.3 - 71 mm |
Tilt angle range | -60 - 60° |
Angle of rotation | 180° |
Cable management | Yes |
Swivelling | Yes |
Swivel angle range | -90 - 90° |
Tilt adjustment | Yes |
Logistics data | |
Harmonized System (HS) code | HS7326909890 |
Master (outer) case net weight | 11.1 kg |
Master (outer) case width | 240 mm |
Master (outer) case length | 260 mm |
Master (outer) case height | 905 mm |
Products per master (outer) case | 2 pc(s) |
Products per pallet (EU) | 36 pc(s) |
Other features | |
Country of origin | China |
