337.99€
Ex Tax: 279.33€
  • Stock: 10
  • Model: DS70S-950WH2
  • ISBN: 8717371441555
  • MPN: DS70S-950WH2

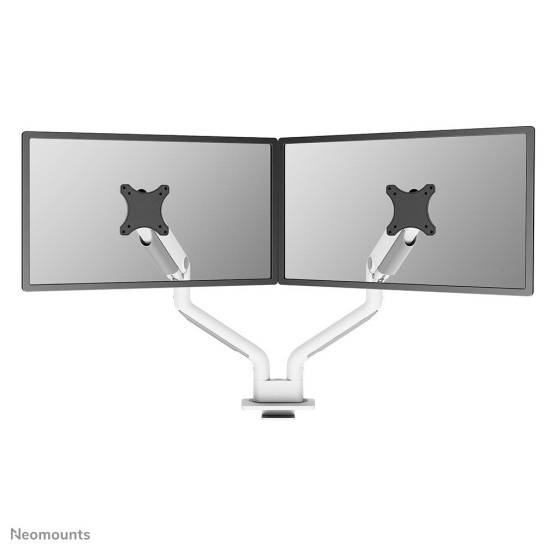

The Neomounts DS70S-950WH2 NEXT One is a full motion desk mount for two screens up to 35". The DS70S-950WH2 is a true all-in one solutions for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

The DS70S-950WH2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS70S-950WH2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Mounting
Minimum screen size 43.2 cm (17")
Maximum weight capacity 18 kg
Maximum screen size 88.9 cm (35")
Mounting Clamp/Grommet
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm
Panel mounting interface 75 x 75,100 x 100 mm
Distance to the wall (max) 65.6 cm
Grommet mount desk thickness (max) 5.5 cm
Number of displays supported 2
Distance to the wall (min) 11.9 cm
Mounting type Desk
Clamp mount desk thickness (max) 5 cm
Technical details
Warranty period 10 year(s)
Weight & dimensions
Width 186 mm
Depth 656 mm
Height 579 mm
Package width 410 mm
Package depth 124 mm
Package height 496 mm
Package net weight 7.9 kg
Package type Box
Design
Housing material Aluminium
Easy to install Yes
Product colour White
Ergonomics
Height adjustment Yes
Height adjustment type Gas spring
Rotating Yes
Height adjustment range 20.2 - 52.2 mm
Adjustable depth Yes
Depth adjustment range 8.8 - 62.5 mm
Tilt angle range -90 - 90°
Number of arms 2
Angle of rotation 180°
Cable management Yes
Swivelling Yes
Swivel angle range -90 - 90°
Tilt adjustment Yes
Logistics data
Harmonized System (HS) code HS7326909890
Master (outer) case net weight 14 kg
Master (outer) case width 260 mm
Master (outer) case length 320 mm
Master (outer) case height 505 mm
Products per master (outer) case 2 pc(s)
Products per pallet (EU) 48 pc(s)
Other features
Country of origin China
