Neomounts heavy duty TV wall mount

269.47€

Ex Tax: 222.70€

Stock: 46
Model: WL40S-950BL18
ISBN: 8717371449575
MPN: WL40S-950BL18

Neomounts

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

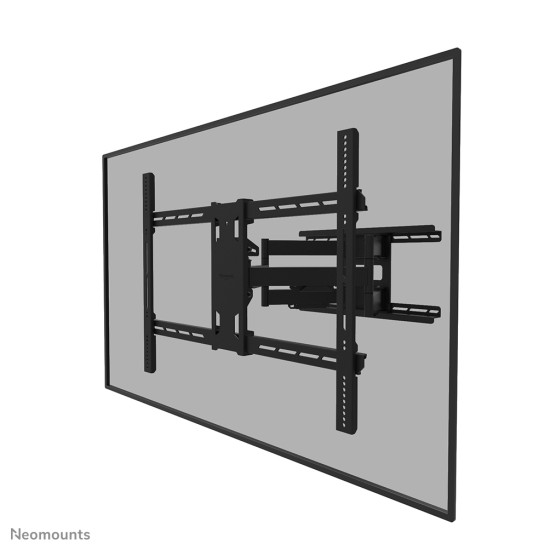

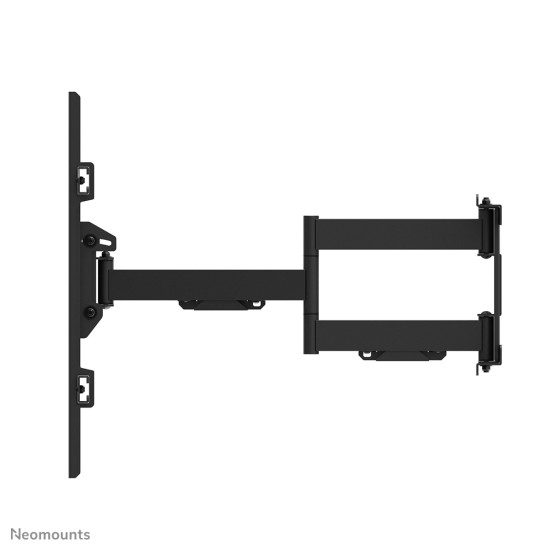

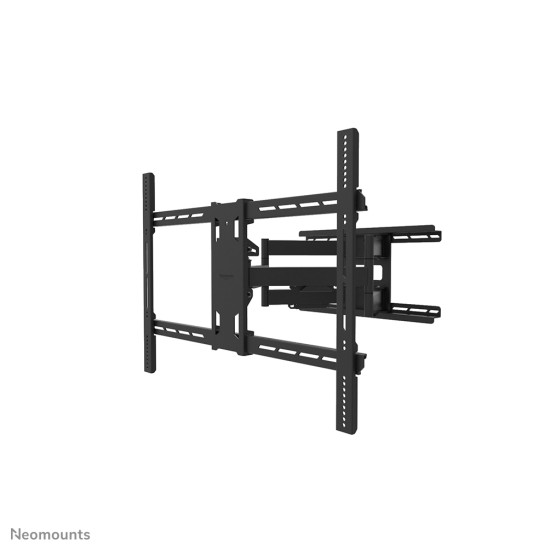

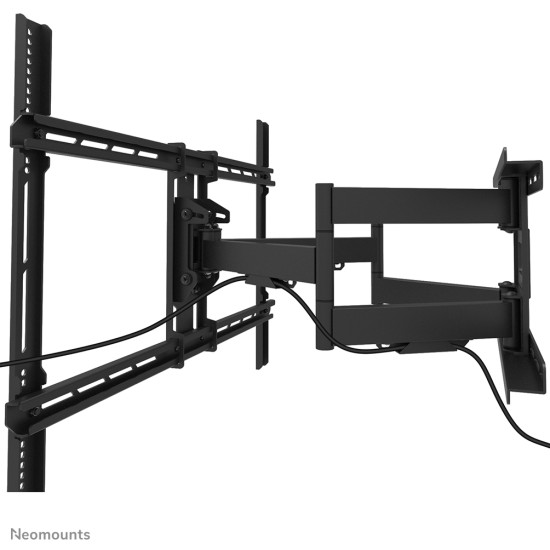

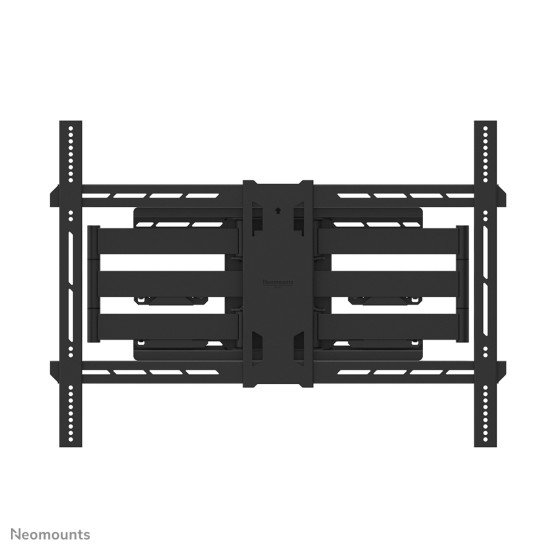

The Neomounts WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.

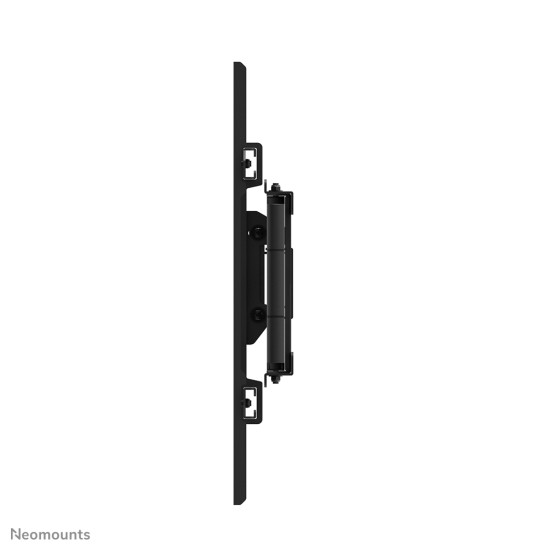

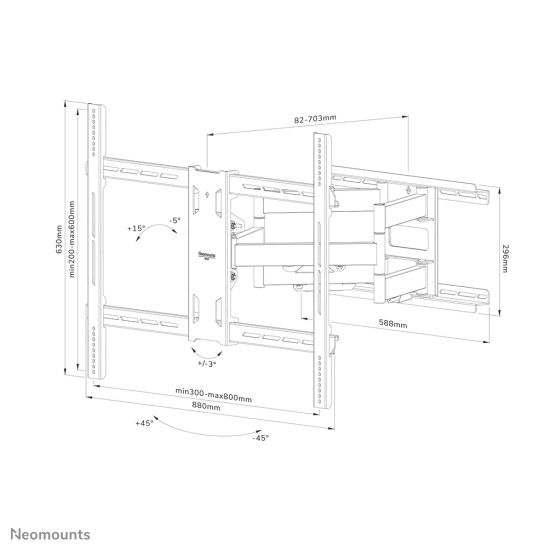

The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.

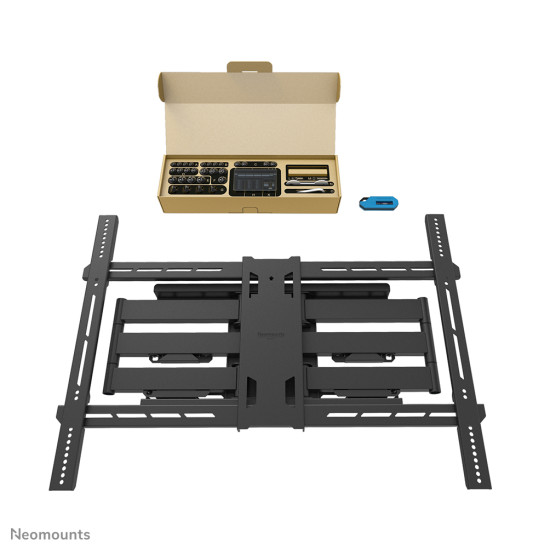

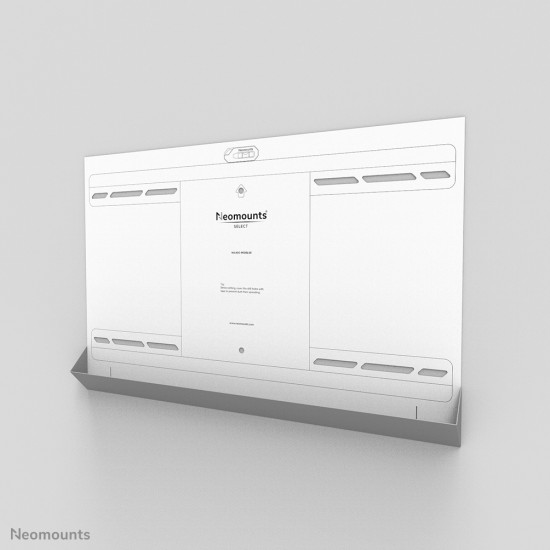

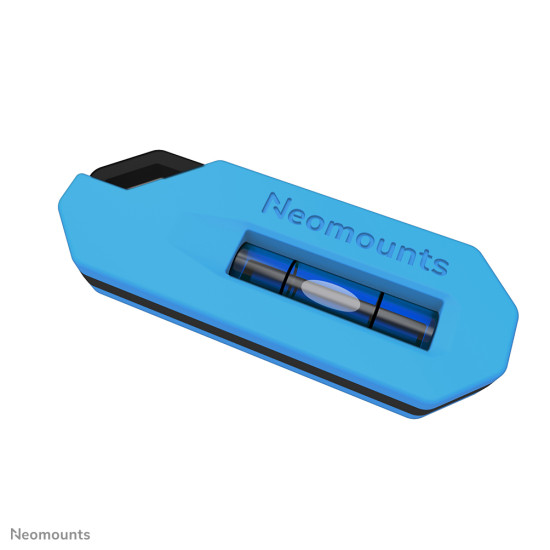

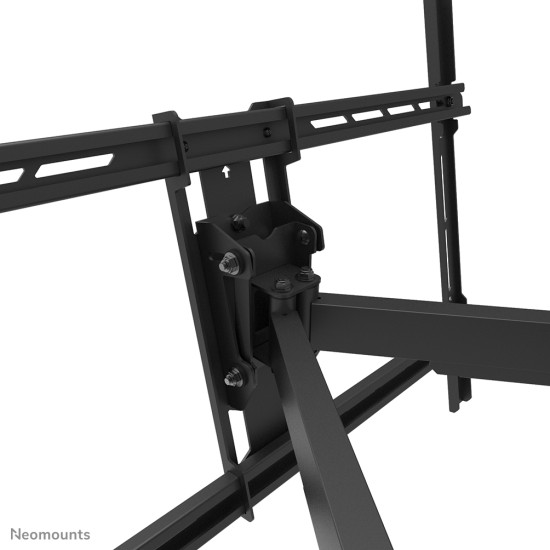

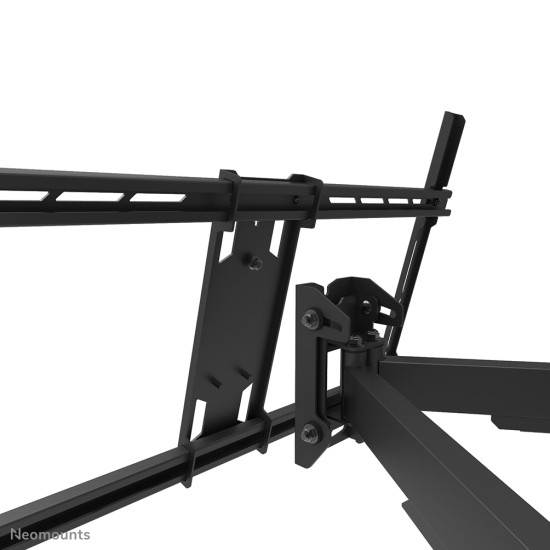

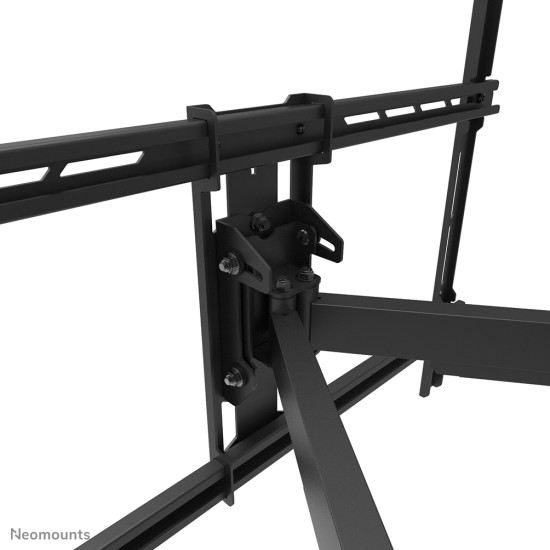

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.

Mounting
Minimum screen size	139.7 cm (55")
Maximum weight capacity	125 kg
Maximum screen size	2.79 m (110")
Minimum VESA mount	300 x 200 mm
Suitable for TV	Yes
Maximum VESA mount	800 x 600 mm
Panel mounting interface	300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 400,600 x 600,600 x 300,600 x 500,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600
Distance to the wall (max)	70.3 cm
Number of displays supported	1
Distance to the wall (min)	8.2 cm
Mounting type	Wall
Technical details
Warranty period	5 year(s)
Weight & dimensions
Width	880 mm
Depth	82 mm
Height	630 mm
Package width	450 mm
Package depth	100 mm
Package height	950 mm
Package net weight	22 kg
Design
Product colour	Black
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 10 mm
Tilt angle range	-15 - 5°
Cable management	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Pivot angle	-3 - 3°
Packaging content
Mounting kit	Yes
Logistics data
Harmonized System (HS) code	7326909890
Master (outer) case net weight	20.4 kg
Master (outer) case width	450 mm
Master (outer) case length	100 mm
Master (outer) case height	950 mm
Products per master (outer) case	1 pc(s)
Products per pallet (EU)	20 pc(s)
Other features
Country of origin	China
