Neomounts heavy duty TV wall mount

167.28€

Ex Tax: 138.25€

Stock: 15
Model: WL30S-950BL19
ISBN: 8717371449551
MPN: WL30S-950BL19

Neomounts

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

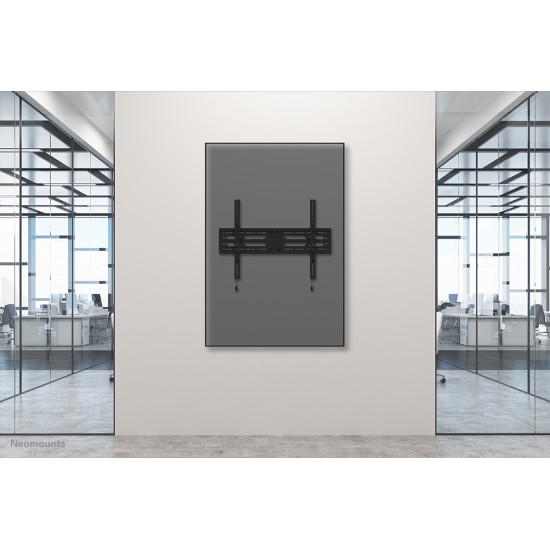

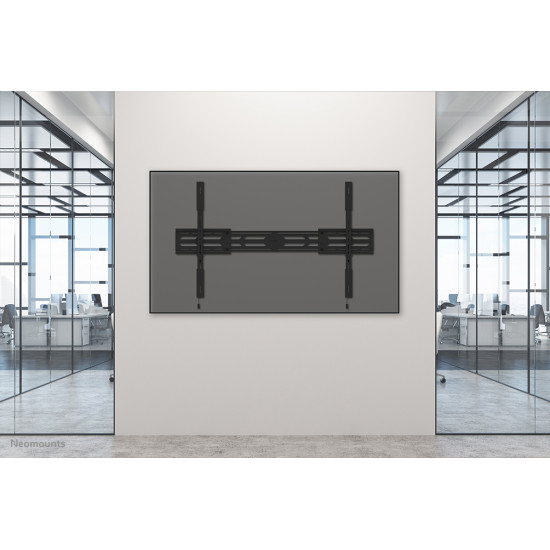

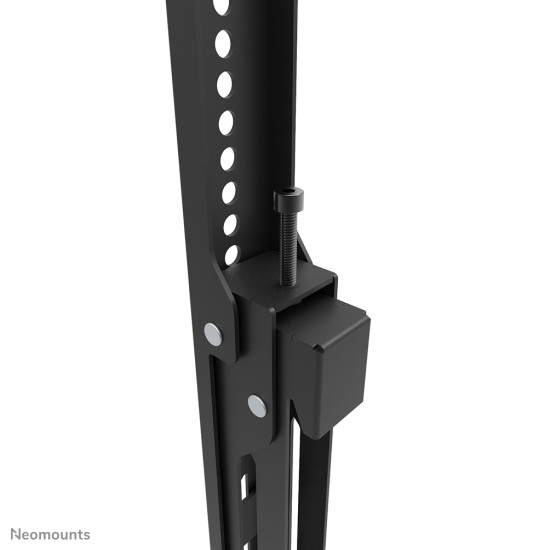

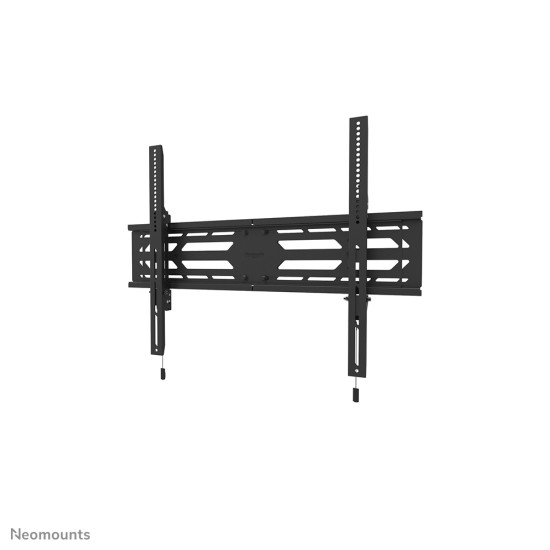

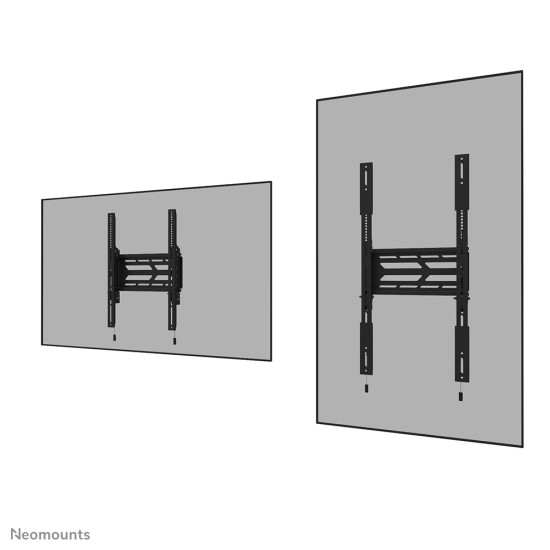

The Neomounts WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

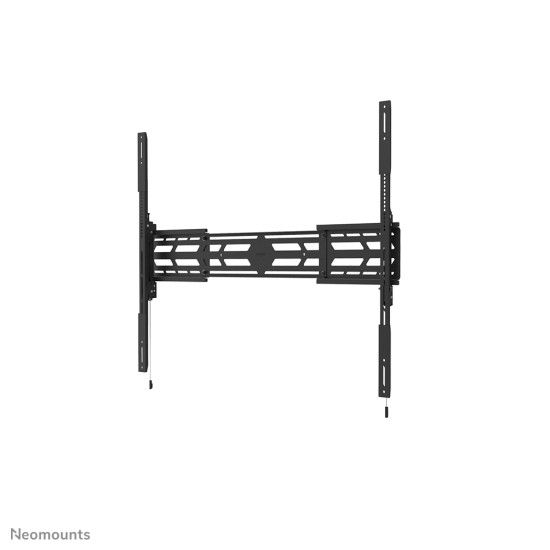

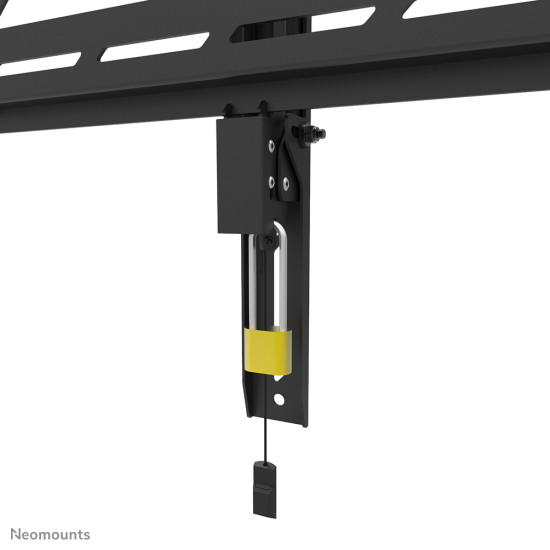

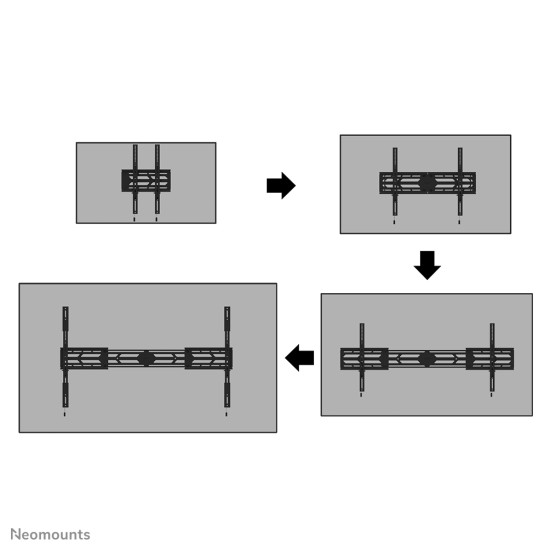

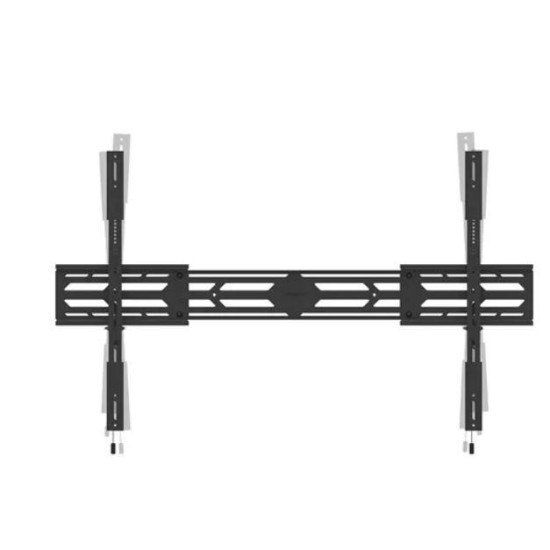

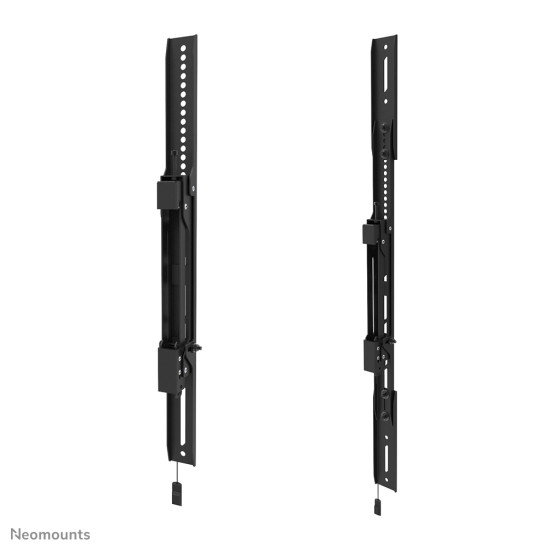

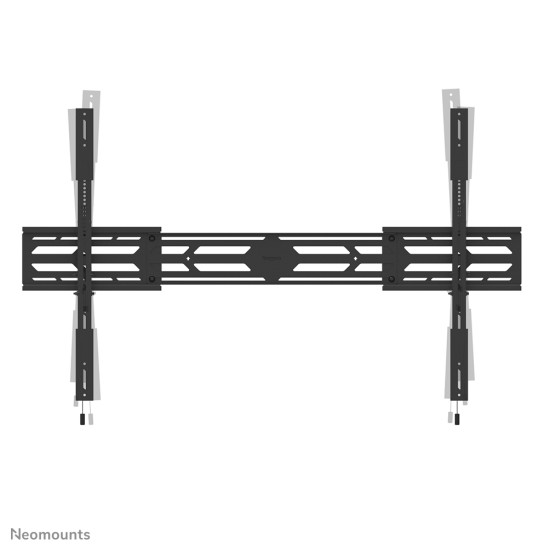

The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).

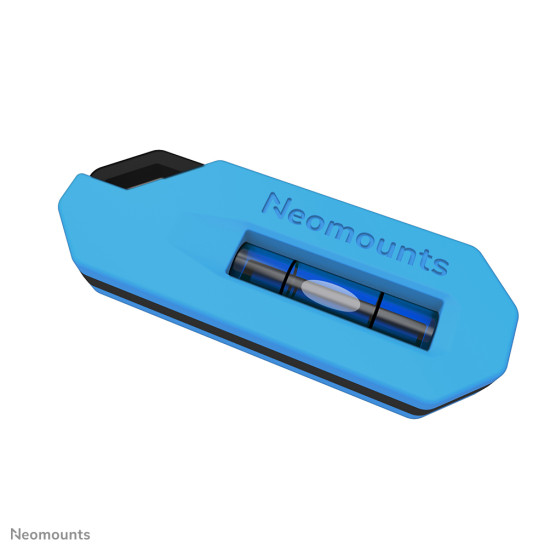

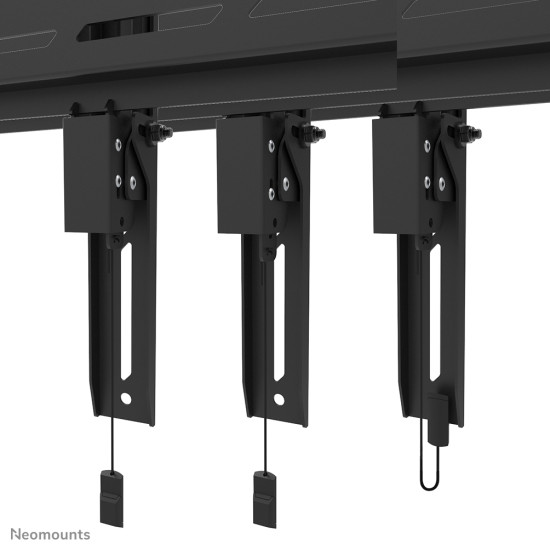

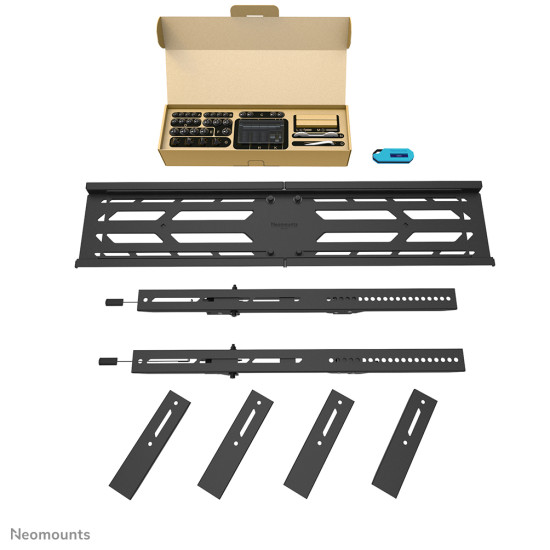

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.

Mounting
Minimum screen size	139.7 cm (55")
Maximum weight capacity	160 kg
Maximum screen size	2.79 m (110")
Minimum VESA mount	100 x 100 mm
Suitable for TV	Yes
Maximum VESA mount	1500 x 900 mm
Panel mounting interface	100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 900,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,440 x 400,460 x 640,500 x 400,600 x 200,600 x 300,600 x 400,600 x 600,600 x 500,680 x 300,800 x 200,800 x 400,800 x 600,800 x 800,800 x 500,900 x 600,1000 x 400,1000 x 600,1000 x 700,1000 x 800,1200 x 600,1200 x 800,1400 x 800
Distance to the wall (max)	6.7 cm
Number of displays supported	1
Mounting type	Wall
Technical details
Warranty period	5 year(s)

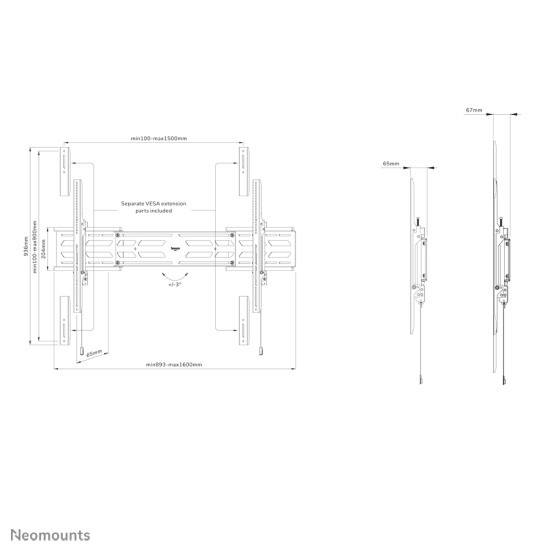

Weight & dimensions
Width	1600 mm
Depth	67 mm
Height	936 mm
Package width	222 mm
Package depth	98 mm
Package height	918 mm
Package net weight	11.7 kg
Design
Accepts padlock	Yes

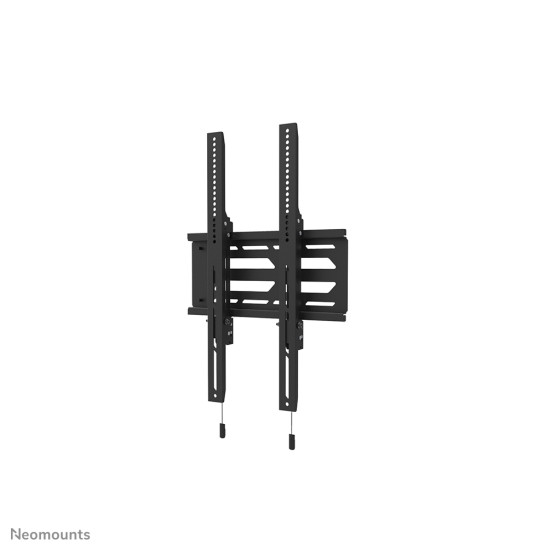

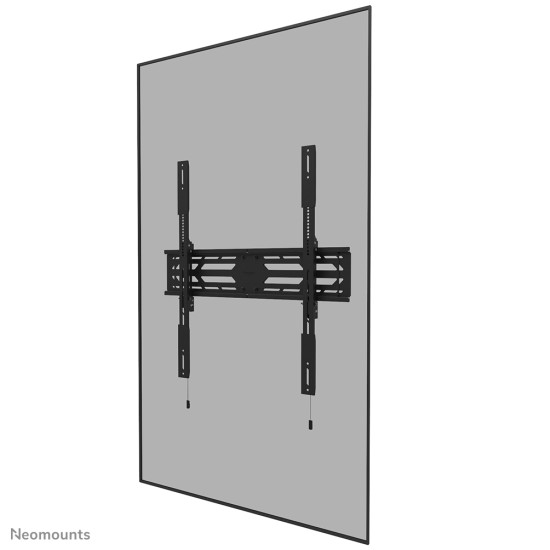

Orientation	Landscape/Portrait
Product colour	Black
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 20 mm
Pivot angle	-3 - 3°
Logistics data
Harmonized System (HS) code	7326909890
Master (outer) case net weight	20.3 kg
Master (outer) case width	211 mm
Master (outer) case length	242 mm
Master (outer) case height	938 mm
Products per master (outer) case	2 pc(s)
Products per pallet (EU)	30 pc(s)
Other features
Width adjustment range	893 - 1600 mm
Country of origin	China
