Neomounts desk monitor arm
Neomounts desk monitor arm
185.78€
Ex Tax: 153.54€
- Stock: 10
- Model: DS70-810BL2
- ISBN: 8717371449223
- MPN: DS70-810BL2

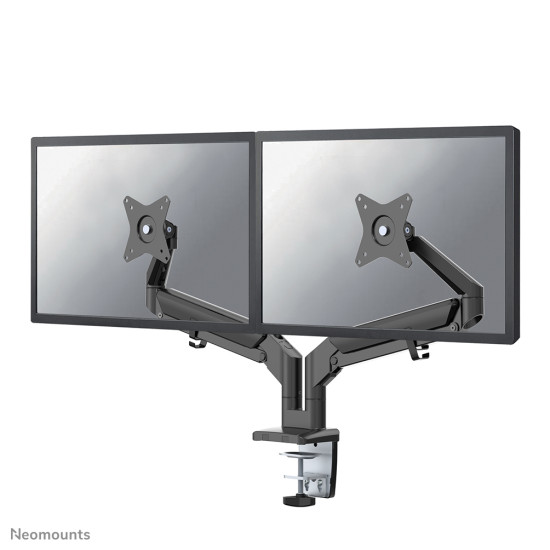

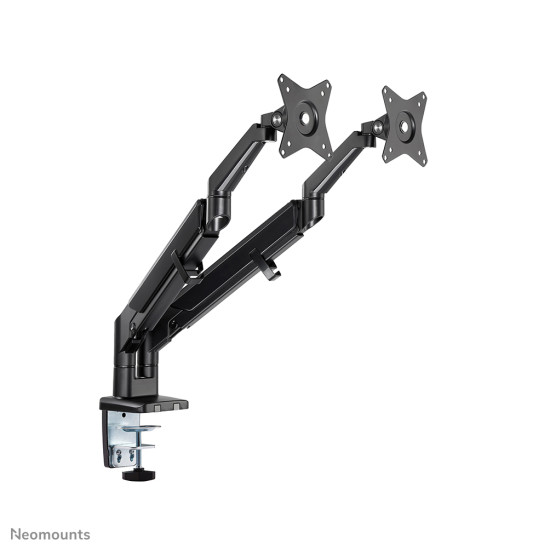

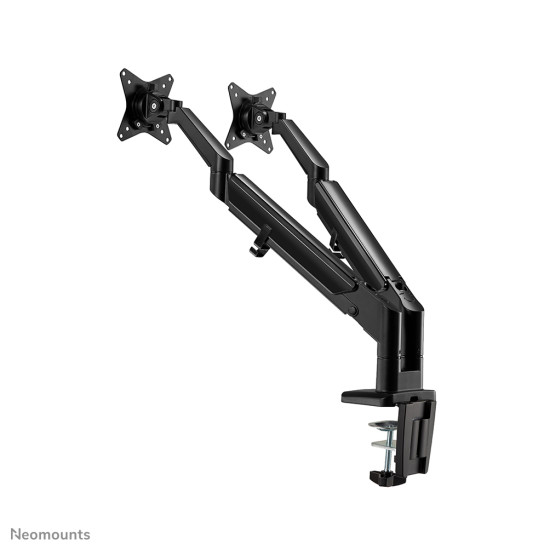

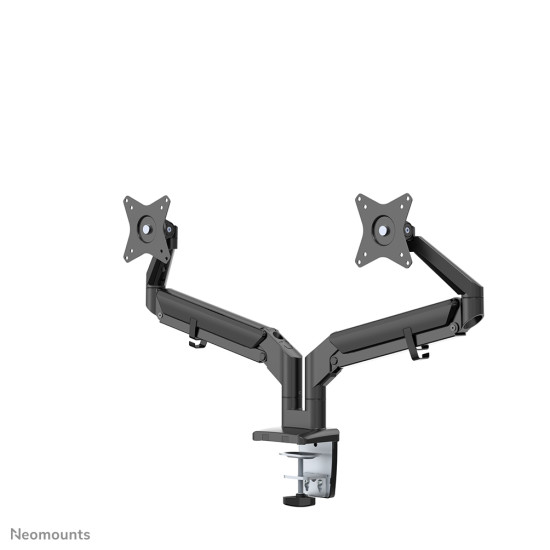

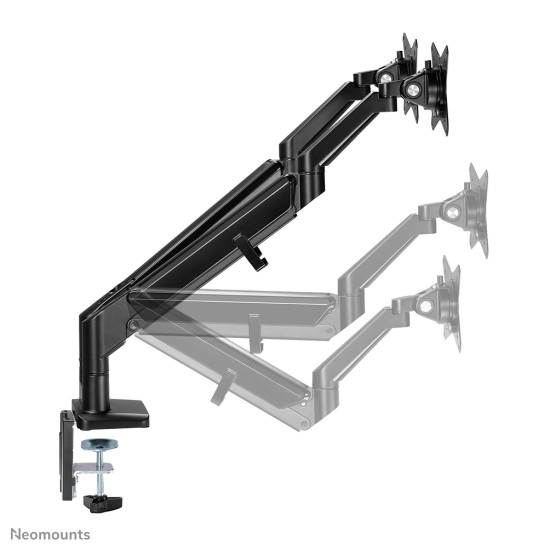

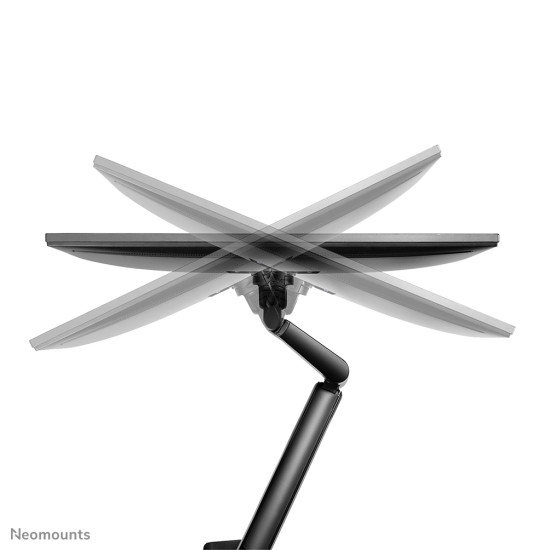

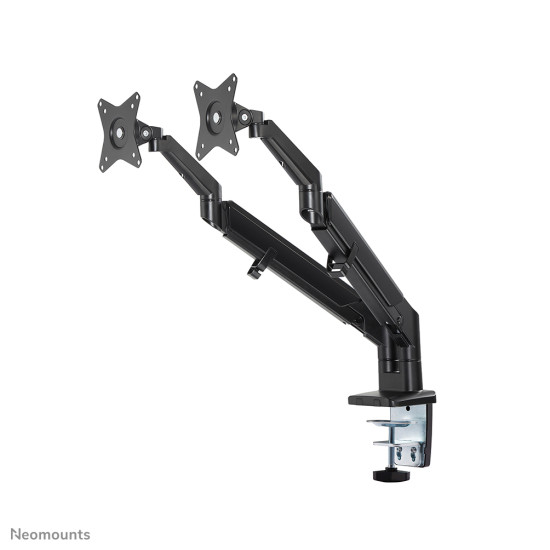

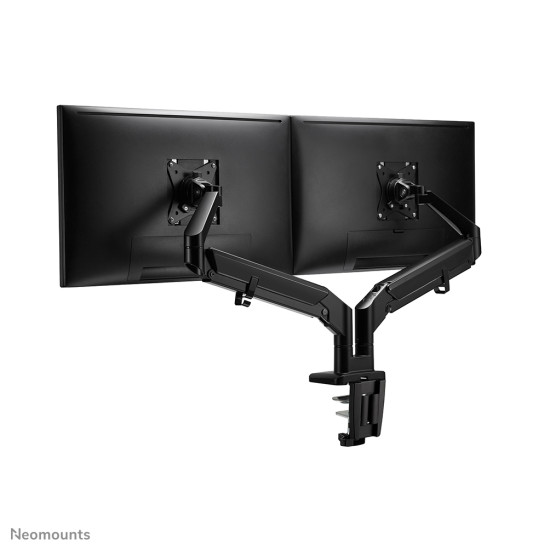

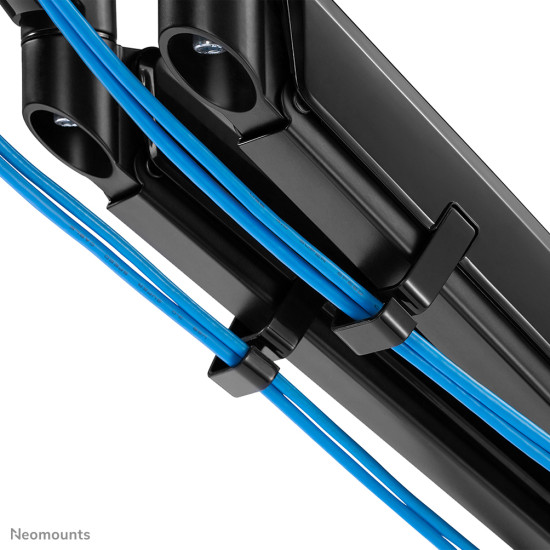

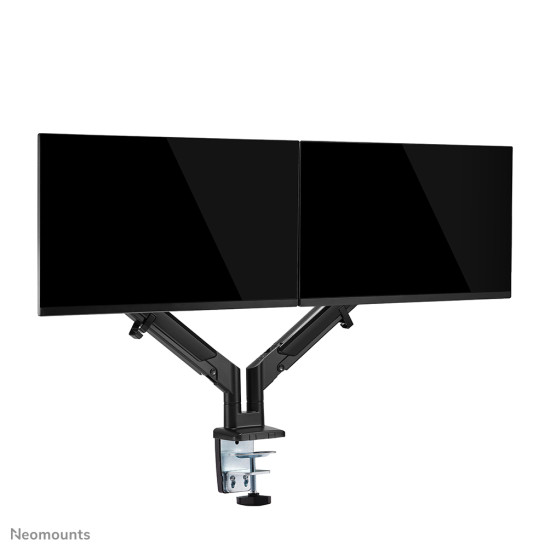

The Neomounts DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.

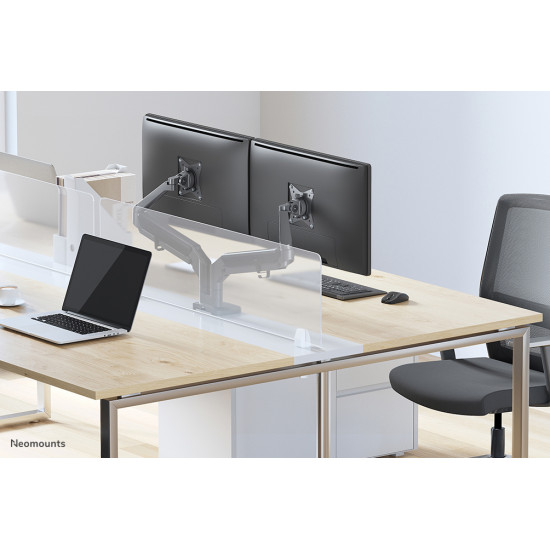

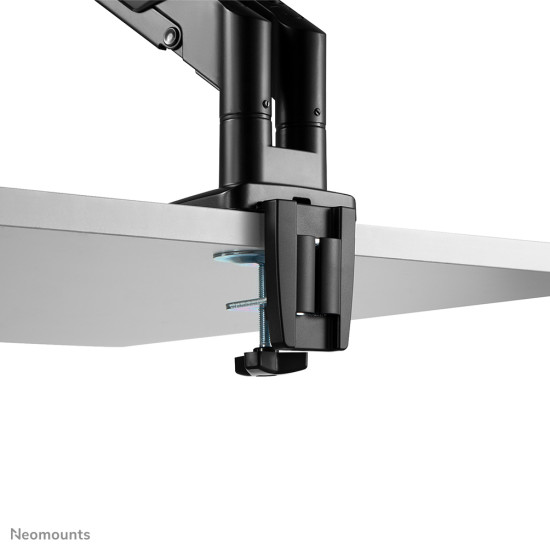

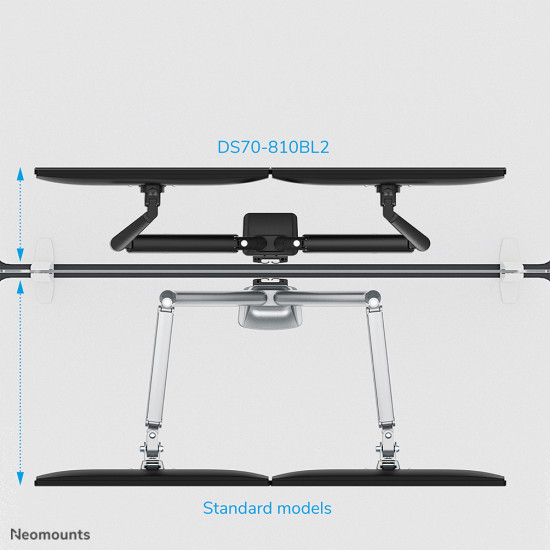

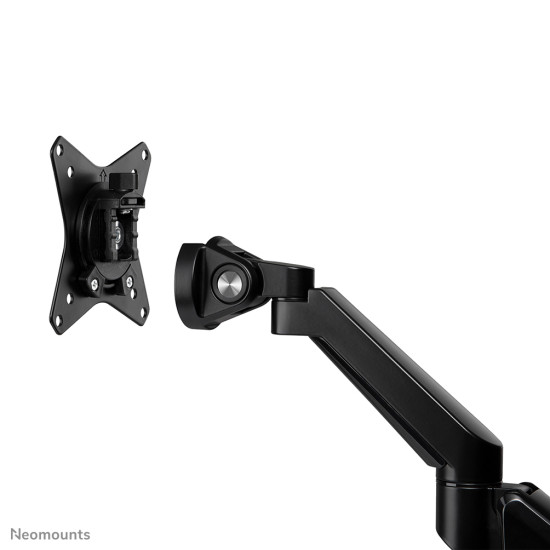

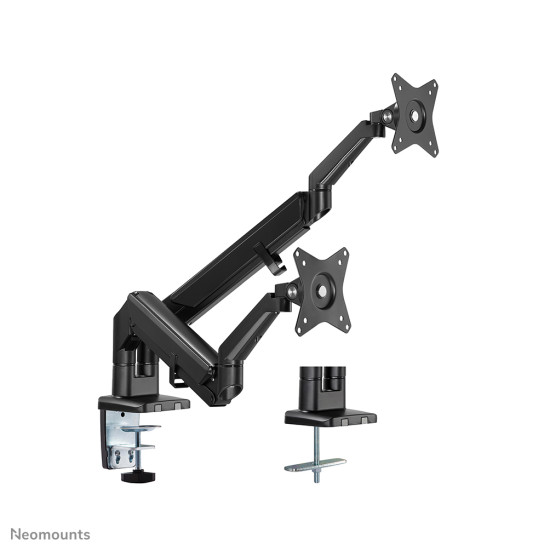

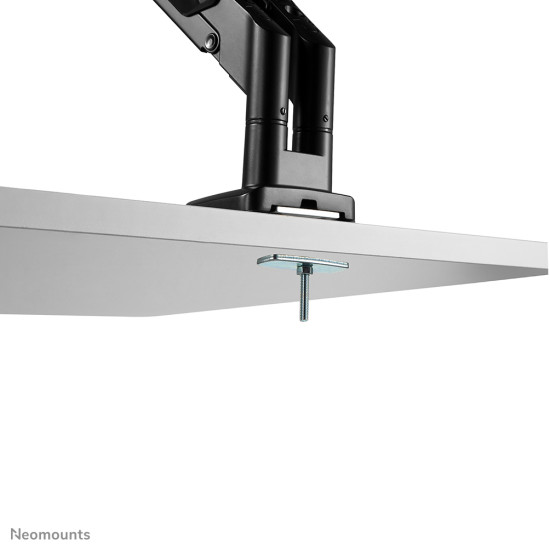

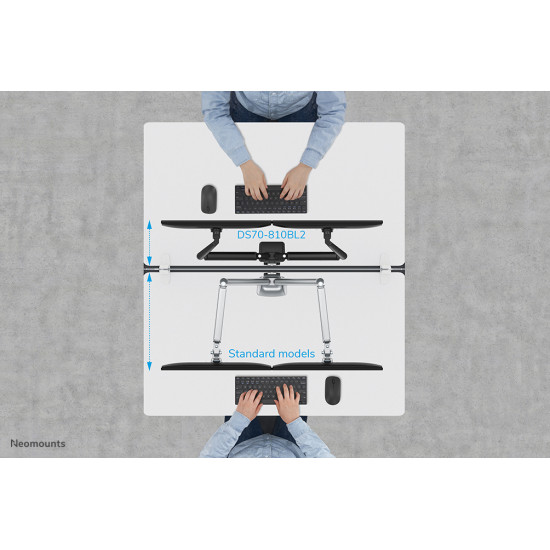

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Mounting | |
Minimum screen size | 43.2 cm (17") |
Maximum weight capacity | 9 kg |
Maximum screen size | 81.3 cm (32") |
Maximum weight capacity (per display) | 9 kg |
Mounting | Clamp/Bolt-through |
Minimum VESA mount | 75 x 75 mm |
Maximum VESA mount | 100 x 100 mm |
Panel mounting interface | 100 x 100 mm |
Number of displays supported | 2 |
Mounting type | Desk |

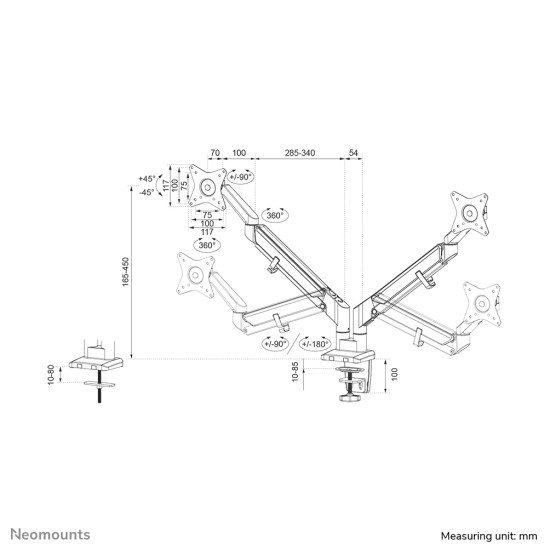

Weight & dimensions | |
Width | 117 mm |
Depth | 555 mm |
Height | 615 mm |
Package width | 265 mm |
Package depth | 142 mm |
Package height | 395 mm |
Package net weight | 6 kg |
Design | |
Orientation | Landscape/Portrait |
Product colour | Black |
Ergonomics | |
Height adjustment | Yes |
Height adjustment type | Gas spring |
Rotating | Yes |
Height adjustment range | 265 - 550 mm |
Adjustable depth | Yes |
Depth adjustment range | 0 - 490 mm |
Tilt angle range | -45 - 45° |
Angle of rotation | 180° |
Cable management | Yes |
Swivel angle range | -90 - 90° |
Tilt adjustment | Yes |
Packaging data | |
Quantity per pack | 1 pc(s) |
Logistics data | |
Harmonized System (HS) code | 7326909890 |
Master (outer) case net weight | 21 kg |
Master (outer) case width | 550 mm |
Master (outer) case length | 410 mm |
Master (outer) case height | 305 mm |
Products per master (outer) case | 4 pc(s) |
Products per pallet (EU) | 72 pc(s) |
Other features | |
Country of origin | China |
