APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1200 W 8 AC outlet(s)
APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1200 W 8 AC outlet(s)
1,579.95€
Ex Tax: 1,305.74€
- Stock: 2
- Model: SMX1500RMI2U
- ISBN: 0731304268598
- MPN: SMX1500RMI2U
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
Battery | |
Battery capacity | 311 VAh |

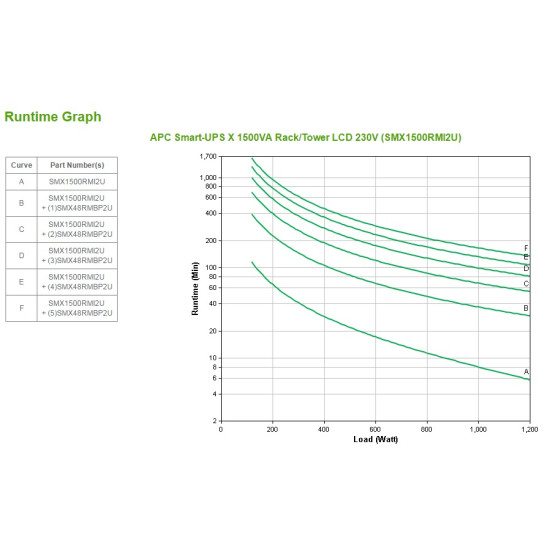

Typical backup time at full load | 5.8 min |
Typical backup time at half load | 17.2 min |
Battery technology | Sealed Lead Acid (VRLA) |
Battery life (max) | 5 year(s) |
Battery recharge time | 3 h |
Hot-swap battery | Yes |
Automatic battery test | Yes |
Cold start | Yes |
Features | |
UPS topology | Line-Interactive |
Output power capacity | 1.5 kVA |
Output power | 1200 W |
Waveform | Sine |
Input operation voltage (min) | 151 V |
Input operation voltage (max) | 302 V |
Input frequency | 50/60 Hz |
Output frequency regulation | 50/60 Hz |
Automatic Voltage Regulation (AVR) | Yes |
Efficiency | 98.5% |
Emergency Power Off (EPO) | Yes |
Surge energy rating | 645 J |
Noise level | 40 dB |
Audible alarm(s) | Yes |
Audible alarm modes | Low battery alarm, Overload alarm |
Auto-restart | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -15 - 45 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 0 - 15000 m |
Ports & interfaces | |
Number of output IEC jumpers | 2 |
AC outlet types | C13 coupler |
Power plug | C14 coupler |
AC outlets quantity | 8 AC outlet(s) |
USB port | Yes |
SmartSlot | Yes |
Technical details | |
Sustainability certificates | RoHS |
Compliance certificates | RoHS |
Weight & dimensions | |
Width | 432 mm |
Depth | 490 mm |
Height | 89 mm |
Weight | 24.8 kg |
Package width | 589 mm |
Package depth | 620 mm |
Package height | 246 mm |
Package weight | 30 kg |
Design | |
Rack capacity | 2U |
Cable length | 1.83 m |
Form factor | Rackmount/Tower |
Product colour | Black |
LED indicators | Yes |
Certification | CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI |
Packaging data | |
Rack mount kit | Yes |
Cables included | RS-232, USB cable |
Software CD | Yes |
Quick installation guide | Yes |
Logistics data | |
Products per pallet | 8 pc(s) |
Harmonized System (HS) code | 85078000 |
Other features | |
Packaging content | Removable support feet |
Nominal output voltage | 230 V |
Nominal input voltage | 230 V |
