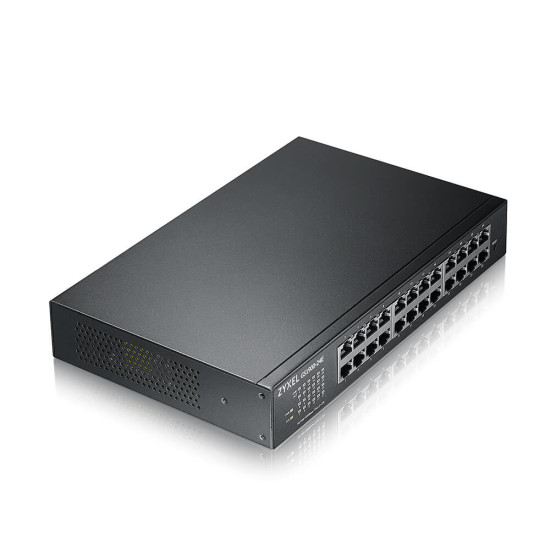

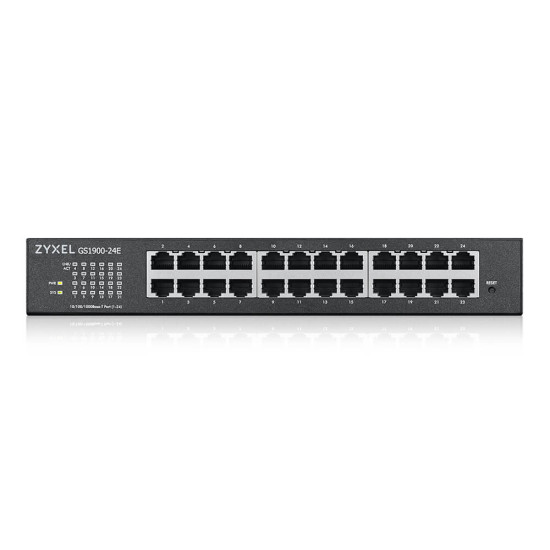

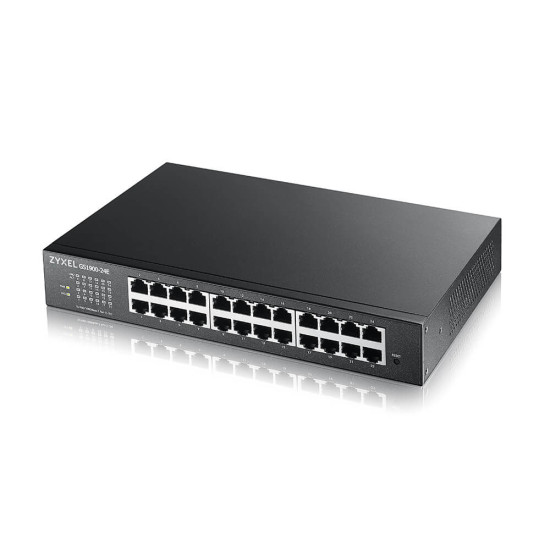

Zyxel GS1900-24E-EU0103F network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Zyxel GS1900-24E-EU0103F network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
95.52€
Ex Tax: 78.94€
- Stock: 13
- Model: GS1900-24E-EU0103F
- ISBN: 4718937621132
- MPN: GS1900-24E-EU0103F
Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.
Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.
Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.
Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.
Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.
Data transmission | |
Forwarding rate | 35.7 Mpps |
Switching capacity | 48 Gbit/s |
MAC address table | 8000 entries |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Jumbo frames | 9000 |
Packet buffer memory | 0.525 MB |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 95% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 50 °C |
Storage relative humidity (H-H) | 10 - 95% |
Heat dissipation | 51.49 BTU/h |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Power connector | AC-in jack |
Weight & dimensions | |
Width | 267 mm |
Depth | 162 mm |
Height | 42 mm |
Weight | 1.56 kg |
Design | |
Reset button | Yes |
Wall mountable | Yes |
Rack mounting | Yes |
Stackable | Yes |
Form factor | 1U |
Product colour | Black |
LED indicators | Yes |
Certification | EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant |
Management features | |
Switch type | Managed |
Switch layer | L2 |
MIB support | RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9),RFC 1215 generic traps, RFC 1493 bridge, Zyxel private common MIB |
System event log | Yes |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Network | |
Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
10G support | No |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Full duplex | Yes |
Flow control support | Yes |
Link aggregation | Yes |
MAC address auto-learning supported | Yes |
Virtual LAN features | Stacked VLAN, VLAN mapping |
Port mirroring | Yes |
Spanning tree protocol | Yes |
VLAN support | Yes |
Security | |
DHCP features | DHCP client |
Security algorithms | 802.1x RADIUS |
Authentication type | RADIUS, TACACS+ |
MAC address filtering | Yes |
IGMP snooping | Yes |
SSH/SSL support | Yes |
Static port security | Yes |
Password protection | Yes |
Packaging data | |
Package width | 325 mm |
Package depth | 223 mm |
Package height | 71 mm |
Package weight | 2.05 kg |
Rack mount kit | Yes |
Cables included | AC |
Package type | Box |
Performance | |
Mean time between failures (MTBF) | 804.714 h |
Power | |
Power source | AC |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (max) | 15.1 W |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
