Multibrackets M Public Video Wall Mount Push HD Max 90kg

362.42€

Ex Tax: 299.52€

Stock: 2
Model: 7350073731749
ISBN: 7350073731749
MPN: 1749

Multibrackets

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

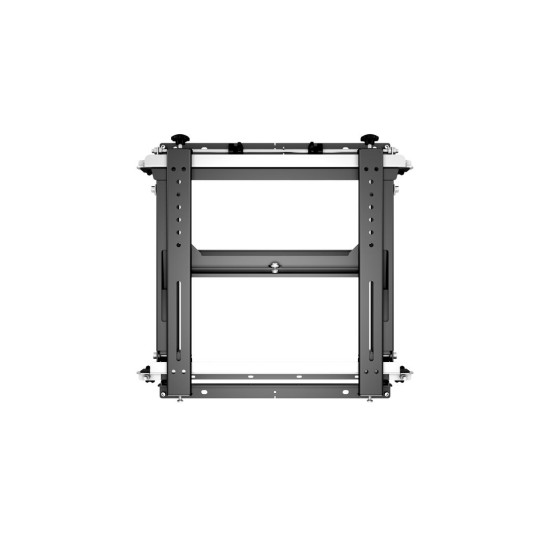

The M Public Video Wall Mount Push Max 90kg especially made for large displays and it might just be one of the markets most innovative and easy to install video wall mounts available. With numerous post installation possibilities and a tailored pantograph alignment system this might be the most easy to use, yet most powerful video wall mount system you have ever seen.

With the market for Video Wall installations growing at a fantastic pace, the need for a high quality, affordable and installer friendly mounting equipment has become in the need by many. Our M Public Video Wall Mount Push HD is a video a wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. Making it an installers dream.

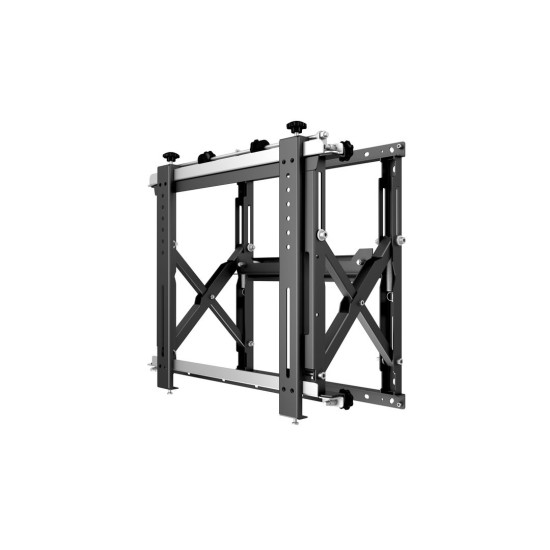

The "Pop out" feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Simply push against the screen to release the lock, then the screen will pop out, you do not need to remove any other screens to access a center screen for maintenance or when placed in recessed areas. The pop out feature is handled by its scissor arm construction expanding out. Of course the screen is as easily pushed back into place after maintenance is finished.

With the built in fine tune adjustments each of the M Video Wall Push Max 90kg can be adjusted individually to match "its neighboring screens". By 8 knobs the screens can be adjusted in depth, side and height. What before could take hours for an installer to measure and re install, is now fixed in a matter of minutes. Truly an installers dream come true.

The M Video Wall Push Max 90kg is an iron structure with epoxy painting, holding screens up to 90kg in "pop outed" position. We think this may just be the strongest video wall mount on the market, making continues service and usage of the mounts easy.

Mounting
Minimum screen size	127 cm (50")
Maximum weight capacity	90 kg
Maximum screen size	2.41 m (95")
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	200 x 200,300 x 200,300 x 300,400 x 200,400 x 400
Number of displays supported	1
Mounting type	Wall
Weight & dimensions
Width	489 mm
Height	542 mm
Weight	14 kg
Design
Product colour	Black
Packaging data
Package width	600 mm
Package depth	600 mm
Package height	100 mm
Package weight	14 kg
Package type	Box
Logistics data
Products per shipping (inner) case	1 pc(s)

Tags: Signage Display Mounts
