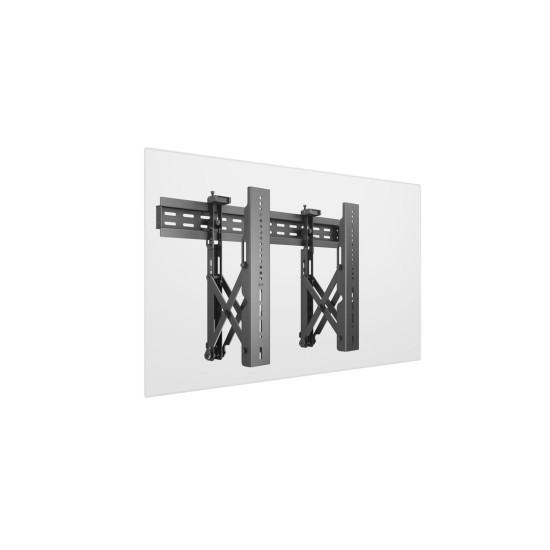

Our innovative design combined with a video wall mount partially pre assembled right out of the box, makes this our fastest installing video wall system ever!

With the market for Video Wall installations growing at a fantastic pace, the need for a high quality, affordable and installer friendly mounting equipment has become in the need by many.

Our M Public Video Wall Mount Push is a video a wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. Making it an installers dream.

With the M Public Video Wall Mount Push you can create multiple different configurations and screen set ups. Finally you can leave the tedious wall spacers behind. As with other Multibrackets products the installation is built on the first rail installed onto the wall. thereafter the second is put up and leveled very easy as the third etc. No measuring and guessing needed. We think of it as one of the most simple and fast ways to make video wall installation come to life.

The Push in pop out feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall.

Simply push against the screen to release the lock, then the screen will pop out, you do not need to remove any other screens to access a center screen for maintenance or when placed in recessed areas.

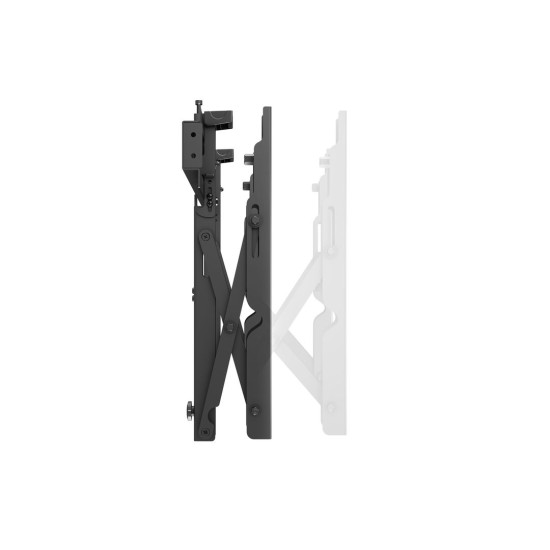

The pop out feature is handled by its scissor arm construction expanding out. Of course the screen is as easily pushed back into place after maintenance is finished.

Mounting
Minimum screen size	101.6 cm (40")
Maximum weight capacity	40 kg
Maximum screen size	177.8 cm (70")
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Number of displays supported	1
Mounting type	Wall

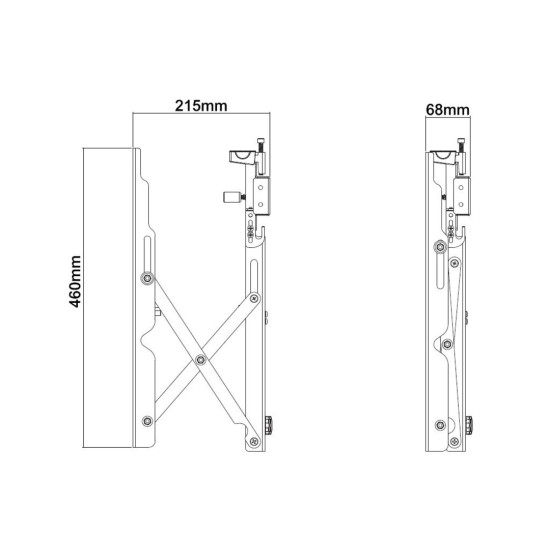

Weight & dimensions
Width	760 mm
Height	460 mm
Weight	6 kg
Depth (max)	20.2 cm
Design
Product colour	Black
Packaging data
Package width	120 mm
Package depth	1000 mm
Package height	110 mm
Package weight	6.94 kg
Package type	Box
Logistics data
Products per pallet (EU)	36 pc(s)
Shipping (inner) case width	100 cm
Shipping (inner) case length	33.5 cm
Shipping (inner) case height	14 cm
Shipping (inner) case gross weight	25.5 kg
Products per shipping (inner) case	3 pc(s)
